Adding a Model Work Order Restriction

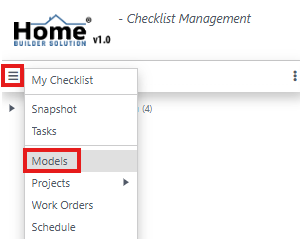

Go to the navigation menu and then click on Models.

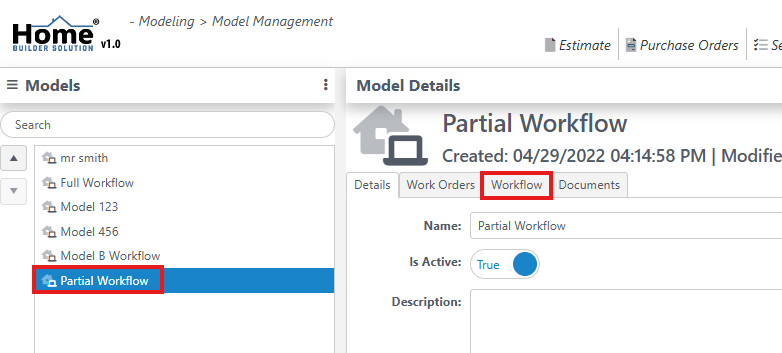

Select the model and then click on the Workflow tab.

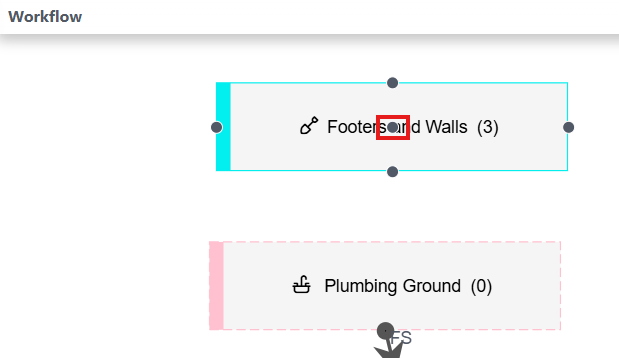

Drag the arrow from one work order to another to create the restriction.

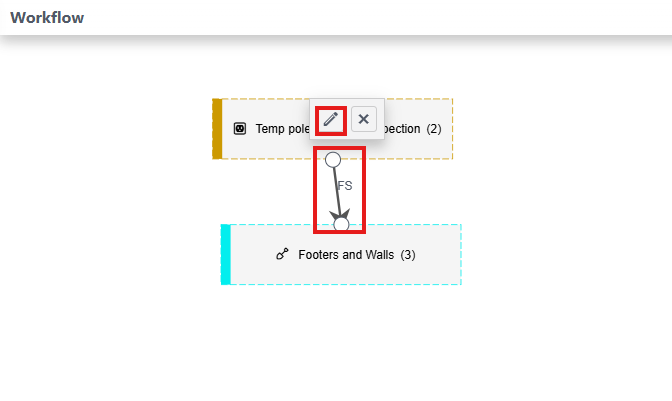

To edit the restriction, click on the arrow that connects them.  Then click on the pencil icon.

Select the Type.  FS is finish to start which indicates the previous work order needs to complete before the next one can begin.  SS is start to start which indicates that both work orders can begin at the same time.  If a lag day is needed between two work orders, enter the number of days in the lag field.  Negative lag days are also supported if the work order can begin before the other completes.  Then click on Save.
